Used 2014 Coachmen RV Catalina Destination Series 39BHTS

Destination Trailer

Stock #DG1398B

Doug's Recreation

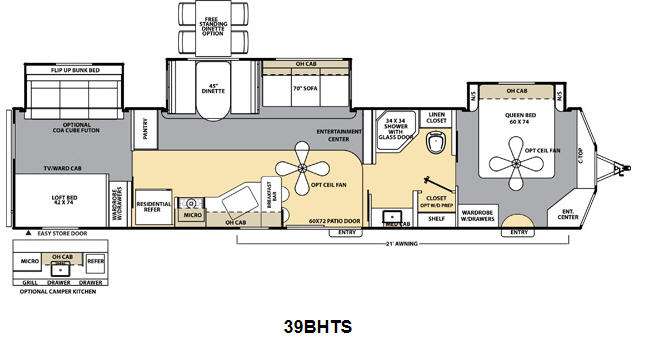

Floorplan - 2014 Coachmen RV Catalina Destination Series 39BHTS

1 of 1

Specifications

Sleeps	10	Slides	3
Length	40 ft 9 in	Ext Width	8 ft
Ext Height	11 ft 8 in	Int Height	7 ft
Hitch Weight	1130 lbs	GVWR	11000 lbs
Dry Weight	9610 lbs	Cargo Capacity	1390 lbs
Fresh Water Capacity	46 gals	Grey Water Capacity	80 gals
Black Water Capacity	40 gals	Tire Size	15"
Furnace BTU	30000 btu

Features

Standard Features (2014)

Cambered structural steel i-beam frame
3/8” Fully decked walk-on roof
2” X 3” longitudinal floor joists on approximately 12” centers
Full extension ball bearing drawer guides
Residential in-floor ducted heat
84” Ceiling height destination trailers
One-piece, seamless, rubber roof material with 12 year warranty
Easy-trac electric slide out(s)
Wall studs on 16” centers
1/2” Plywood dinette, bed and bunk platforms
Roof rafters, constructed of residential-style tapered 5” trusses
5/8” Tongue & groove plywood floor decking
R-7 fiberglass insulation in sidewall, roof & floor
.024” Aluminum exterior skin with .030 Skirt metal
Tile look linoleum flooring

Standard Heat, Power and Water Equipment

Roto-cast holding tanks
Auto-ignition furnace with wall thermostat
110V G.F.C.I. Protected exterior receptacle
50-Amp electric service
12V demand water pump
Systems monitor panel
Hook-up for city water
Double 30-lb. propane gas bottles w/ regulator

Standard Bathroom Equipment

Skylight above bath and shower
Neo-angle shower with glass doors
Towel ring (2) & toilet paper holder
Marine toilet with foot flush
Large sink in bathroom
Medicine cabinet w/ mirror
Bathroom exhaust fan

Standard Kitchen Equipment

Single piece thermofoil countertop with seamless edge
Stonecast residential style sink with extra deep 60/40 double bowl and single lever pull out sprayer faucet
3-Burner range w/ 9,000 btu superburner™
Range hood w/light and exhaust fan
Access doors to the dinette booth
Glued & screwed cabinet construction
Easy-view extra large picture window at dinette
Large pedestal dinette table
Large u-dinette - 38BH
Silverware drawer

Standard Bedroom Equipment

Premium mattress
Under-bed storage, bed lifts easily on gas struts
Deluxe window treatments

Standard Exterior Equipment

Dark tinted (g55) black framed windows w/safety glass
Swing arm entry assist handle at main entry
Radius entry steps
Superlube™ easy maintenance axles
Silver e-coat wheels
Painted bumper w/drain hose carrier and end caps
Radius-cornered fiberglass entrance door
Painted bottom radius skirting
Amber patio light w/inside switch
Baggage doors are lockable and radius-cornered
Grab handle at second entry (per floorplan)
Rain guttering, molded w/drip spouts
Easy-connect exterior LP port - easy access for exterior LP grill or appliance hook-up (all models)
Polished aluminum fender skirts

Standard Interior Equipment

Cognac maple cabinets w/ black accent trim
Jack knife convertible sofa with bolster cushions
Residential furniture
Crank-up digital tv antenna with signal booster
Cable hook-up with RG-6 coax cabling
Marine grade table leg and pedestal base
Valance & lambrequins window treatment
Large dinette tabletop
Night shades in living area

Packages

Customer Value Package

13.5K btu ducted A/C
Heated-enclosed underbelly
Full sized residential refrigerator w/ice maker
Microwave oven
Multi-media premium sound system am/fm/cd/dvd player, antenna and ipod® input jack, cable interior/ exterior hook-ups
A&E™ patio awning
Evencool™ ducted central a/c with wall thermostat & louvered-directional ceiling vents
Water heater by-pass winterization kit

Plus Package

30 Lb. propane gas bottles (2) w/ABS cover
Outside shower
Raised panel kitchen overhead doors
6-Gal. Electronic ignition (dsi) gas/electric water heater

Comfort Package

ABS shower surround
Gas oven
Sink covers/cutting boards combination (2)
Stabilizer jacks
Black tank flush
Mounted telescoping TV swing arm bracket
Detachable power cord with ez pull handle and power Indicating light

Destination Power Package

2 Ceiling fan(s)

Additional Options

Exterior camper kitchen
Free standing dinette - (per floorplan)
Spare tire and tire carrier w/vinyl tire cover
CSA standards
Hide-a-bed sofa (per floorplan)
Outside marine grade speakers
15K btu A/C
13.5K BTU second A/C
Bar stools
Power electric awning
Washer dryer prep
Detachable hitch
Coa cube futon (39BHTS, 40TBS only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
So far very impressed on the pre purchase negotiations and very helpful sales and financial Dept staff. Returning in a few days to seal the deal. Will report again immediately after purchase.

Adam
Excellent Customer Service
We recently purchased the Shadow Cruiser 289RBS and we couldn’t be happier with our purchase and the assistance we received at Bella Vista. Our sales associate was Bruno who was extremely knowledgeable, friendly and considerate. With mine and my husband’s work schedules and having 2 little kids, trailer

Amanda
Excellent Customer Service
I purchased my Jayco trailer with only a few days remaining before the long weekend, the Hiemstra team pulled together and had it ready and PDI’d the trailer and did a lengthy walk through with me, set up the hitch in time to enjoy the weekend with my family with it. Thanks so much to my Salesperson

Joe

We are here to help, call us at
506-433-4222 or Contact Us

We are here to help!

506-433-4222
Contact Us
Request Payment Options

Doug's Recreation is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @506-433-4222 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Used 2014 Coachmen RV Catalina Destination Series 39BHTS

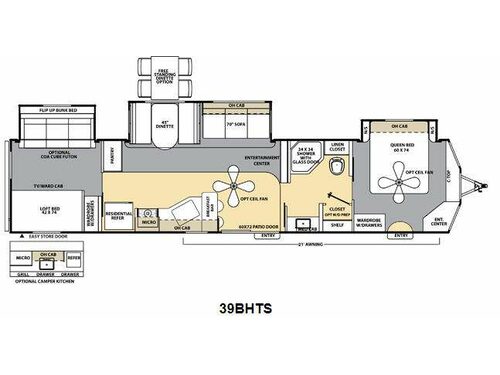

39BHTS Floorplan
